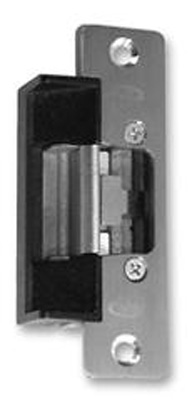

All In One Electric Strike Rutherford make a great strike. It`s among the most versatile and very heavy duty. It will mount in a wood or aluminum frame. The keeper or lip area is center mounted and also enlarged to accommodate just about any latch with up to a 3/4' projection and since the lip is so wide, installation is easier. In addition there are two different monitor outputs-Latch Monitor and Keeper Monitor. The latch monitor can tell you that a latch has entered the strike and the keeper monitor can tell you if the strikes keeper is in the locked or unlocked position. Not everyone needs this type of feedback but if you want this its included.
Features: •Easy field selectable lock mode from fail safe to fail secure by turning one screw •Rounded corners for easy installation •Easy field selectable voltage (12 or 24VDC and 12 to 24VAC) •Standard version (1-3/8' depth) will accept up to 3/4 inch latch projection and lower profile (1-1/16') version (special order only) will accept up to a 5/8 inch latch. •Easy horizontal adjustability (up to 1/4') •Plug-in wire connectors included •Latch Monitor/Keeper Monitor Switches Option included •Tested to over 1,000,000 cycles •Dynamic forces tested to 70 ft. lbs. •Static strength: 1000 lbs •UL Listed 1034 Burglary Dimensions: 4 7/8' long X 1 1/4' wide X 1 3/8' deep
|
|
|
|
|
